# ADAPTEC, INC.
ANA-6911A/TX
Card Type Network Interface Card
NIC Type Ethernet
Boot ROM Available
Network Transfer Rate 200Mbps/100Mbps/20Mbps/10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

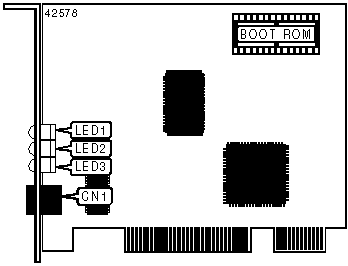

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 UTP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Green | On | Network connection is |
| | | | good |
|------+--------------+----------+---------------------------|
| LED1 | Green | Off | Network connection is not |
| | | | good |
|------+--------------+----------+---------------------------|
| LED2 | Yellow | Blinking | Data is being received |
|------+--------------+----------+---------------------------|
| LED2 | Yellow | Off | Data is not being |
| | | | received |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | On | Operating at 100 Mbps |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Operating at 10 Mbps |
+------------------------------------------------------------+
