# ADAPTEC, INC.
ANA-6922
Card Type Network Interface Card
NIC Type Ethernet
Boot ROM Not available
Network Transfer Rate 200Mbps/100Mbps/20Mbps/10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI

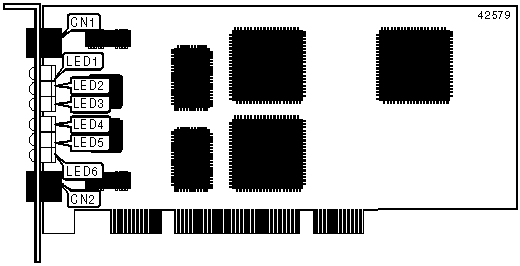

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|--------------------------------+---------------------------|
| Port 1 via RJ-45 UTP connector | CN1 |
|--------------------------------+---------------------------|
| Port 2 via RJ-45 UTP connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Green | On | Network connection is |
| | | | good on port 1 |
|------+--------------+----------+---------------------------|
| LED1 | Green | Off | Network connection is not |
| | | | good on port 1 |
|------+--------------+----------+---------------------------|
| LED2 | Yellow | Blinking | Data is being received on |
| | | | port 1 |
|------+--------------+----------+---------------------------|
| LED2 | Yellow | Off | Data is not being |
| | | | received on port 1 |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | On | Port 1 is operating at |
| | | | 100 Mbps |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Port 1 is operating at 10 |
| | | | Mbps |
|------+--------------+----------+---------------------------|
| LED4 | Green | On | Network connection is |
| | | | good on port 2 |
|------+--------------+----------+---------------------------|
| LED4 | Green | Off | Network connection is not |
| | | | good on port 2 |
|------+--------------+----------+---------------------------|
| LED5 | Yellow | Blinking | Data is being received on |
| | | | port 2 |
|------+--------------+----------+---------------------------|
| LED5 | Yellow | Off | Data is not being |
| | | | received on port 2 |
|------+--------------+----------+---------------------------|
| LED6 | Unidentified | On | Port 2 is operating at |
| | | | 100 Mbps |
|------+--------------+----------+---------------------------|
| LED6 | Unidentified | Off | Port 2 is operating at 10 |
| | | | Mbps |
+------------------------------------------------------------+
