# ALFA, INC.
GFC2206
Card Type Network Interface Card
NIC Type Ethernet
Boot ROM Not available
Network Transfer Rate 100Mbps/10Mbps
Topology Star, Peer-Peer
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI

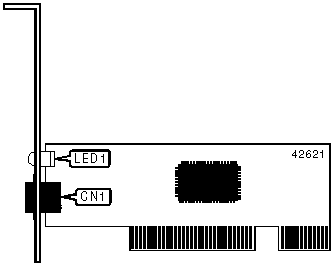

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 UTP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | On | Network connection is good |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | Off | Network connection is not |
| | | | good |
+------------------------------------------------------------+
