# DAVID SYSTEMS, INC.
ETHER-T MAC 10BASE-T
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 32-Bit NuBus (Apple)
Topology Star
Linear Bus
Wiring Type Shielded/Unshielded twisted pair
RG58A/U 50ohm coaxial
Boot ROM Not Available

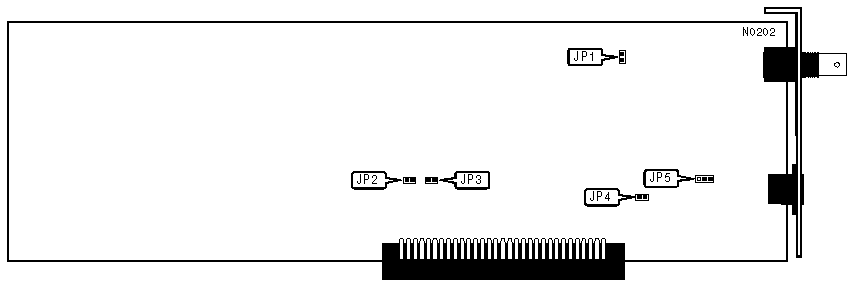

IMG IMG 1
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | JP1 |
|--------------------------------------+---------------------|
| » | Shielded/Unshielded twisted pair | Open |
|---+----------------------------------+---------------------|
| | RG-58A/U 50ohm coaxial | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINK STATUS TEST |
|------------------------------------------------------------|
| Link Status Test | JP2 |
|-------------------------------------------+----------------|
| » | Enabled | Off |
|---------------+---------------------------+----------------|
| | Disabled | On |
|------------------------------------------------------------|
| Note: If the network is pre-10BASE-T, you will need to |
| disabled the link status test. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SQE (SIGNAL QUALITY ERROR) ENABLE/DISABLE |
|------------------------------------------------------------|
| Condition | JP3 |
|------------------------------------------+-----------------|
| » | SQE enabled | Closed |
|-------------+----------------------------+-----------------|
| | SQE disabled | Open |
|------------------------------------------------------------|
| Note: When using Shielded/Unshielded twisted pair, SQE |
| should be disabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Condition | JP4 |
|--------------------------------------+---------------------|
| » | Shielded/Unshielded twisted pair | Closed |
|---+----------------------------------+---------------------|
| | RG-58A/U 50ohm coaxial | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|------------------------------+-----------------------------|
| JP5 | Unknown |
+------------------------------------------------------------+
