# DIGITAL COMMUNICATIONS ASSOCIATES, INC.
CLASSICBLUE ISA
NIC Type Token Ring
Transfer Rate 4/16Mbps
Data Bus 16-bit ISA
Topology Ring
Wiring Type Unshielded twisted pair
Shielded twisted pair (DB-9)
Boot ROM Not available

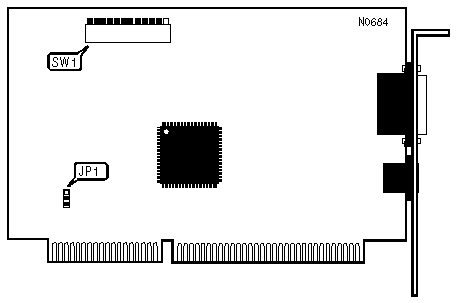

IMG IMG 1
+------------------------------------------------------------+
| ROM ADDRESS SELECT |
|------------------------------------------------------------|
| Address | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|------------+-------+-------+-------+-------+-------+-------|
| » | CC000h | Off | On | On | Off | Off | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | C0000h | Off | On | On | On | On | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | C2000h | Off | On | On | On | On | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | C4000h | Off | On | On | On | Off | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | C6000h | Off | On | On | On | Off | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | C8000h | Off | On | On | Off | On | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | CA000h | Off | On | On | Off | On | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | CE000h | Off | On | On | Off | Off | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | D0000h | Off | On | Off | On | On | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | D2000h | Off | On | Off | On | On | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | D4000h | Off | On | Off | On | Off | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | D6000h | Off | On | Off | On | Off | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | D8000h | Off | On | Off | Off | On | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | DA000h | Off | On | Off | Off | On | Off |
|---+--------+-------+-------+-------+-------+-------+-------|
| | DC000h | Off | On | Off | Off | Off | On |
|---+--------+-------+-------+-------+-------+-------+-------|
| | DE000h | Off | On | Off | Off | Off | Off |
|------------------------------------------------------------|
| Note: The default address for a ClassicBlue card as |
| secondary LAN adapter is DC000h. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA RATE SELECT |
|------------------------------------------------------------|
| Setting | SW1/12 |
|--------------------------------+---------------------------|
| » | 4Mbps | On |
|---+----------------------------+---------------------------|
| | 16Mbps | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | SW1/7 | SW1/8 |
|----------------------+------------------+------------------|
| » | IRQ2 | On | On |
|---+------------------+------------------+------------------|
| | IRQ3 | On | Off |
|---+------------------+------------------+------------------|
| | IRQ6 | Off | On |
|---+------------------+------------------+------------------|
| | IRQ7 | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PRIMARY/SECONDARY LAN CARD SELECT |
|------------------------------------------------------------|
| Setting | SW1/9 |
|------------------------------------------+-----------------|
| » | ClassicBlue as primary LAN adapter | Off |
|---+--------------------------------------+-----------------|
| | ClassicBlue as secondary LAN adapter | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RAM BUFFER SIZE SELECT |
|------------------------------------------------------------|
| Size | SW1/10 | SW1/11 |
|---------------------+-------------------+------------------|
| » | 16KB | Off | On |
|---+-----------------+-------------------+------------------|
| | 8KB | On | On |
|---+-----------------+-------------------+------------------|
| | 32KB | On | Off |
|---+-----------------+-------------------+------------------|
| | 64KB | Off | Off |
+------------------------------------------------------------+
