# CNET TECHNOLOGY, INC..
LC-480E
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 68020 PDS
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available

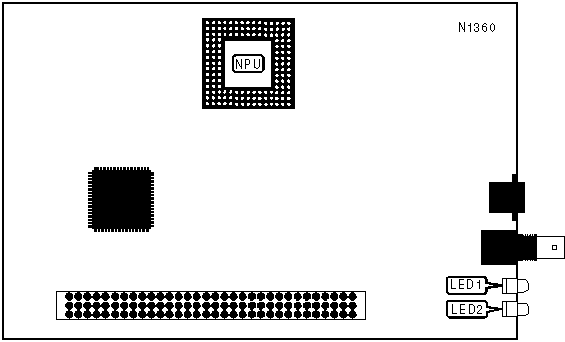

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Red | On | 10Base-T network connection is |
| | | | good |
|------+-------+--------+------------------------------------|
| LED1 | Red | Off | 10Base-T network connection is |
| | | | broken |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Data is being transmitted/received |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Data is not being |
| | | | transmitted/received |
+------------------------------------------------------------+
