# Cnet technology, inc
cn40bc
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard 16KB
Memory
Network Transfer 10Mbps
Rate
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair, RG-58A/U 50ohm
coaxial
Data Bus PCMCIA Type II

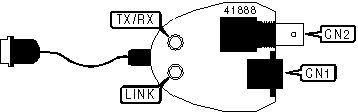

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Unshielded twisted | CN1 | RG-58A/U 50ohm | CN2 |
| pair | | coaxial | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+--------------+----------+--------------------------|
| TX/RX | Unidentified | Blinking | Data is being |
| | | | transmitted/received |
|-------+--------------+----------+--------------------------|
| TX/RX | Unidentified | Off | Data is not being |
| | | | transmitted/received |
|-------+--------------+----------+--------------------------|
| LINK | Unidentified | On | UTP link integrity is |
| | | | good |
|-------+--------------+----------+--------------------------|
| LINK | Unidentified | Off | UTP link integrity is |
| | | | broken |
+------------------------------------------------------------+
