# Compatible systems corporation
Ether+ BNC
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer Rate 10Mbps
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15
Data Bus SCSI
Boot ROM Not available

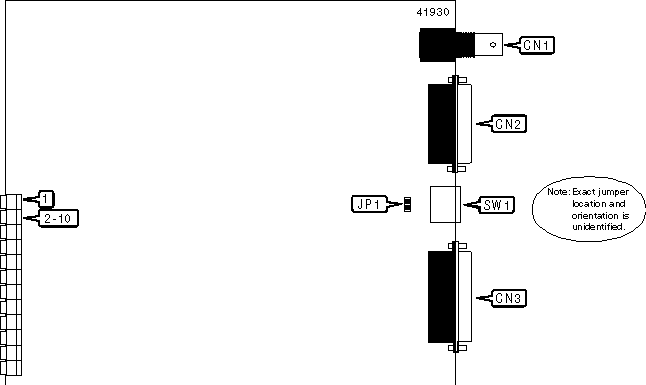

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+--------+----------------+--------|
| RG-58A/U 50ohm coaxial | CN1 | 25-pin SCSI | CN3 |
| | | connector - | |
| | | external | |
|-------------------------+--------+----------------+--------|
| AUI transceiver via | CN2 | | |
| DB-15 | | | |
|------------------------------------------------------------|
| Note: 50-pin SCSI to 25-pin adapter cables are available. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| SCSI ID | SW/1 Position |
|--------------------+---------------------------------------|
| 0 | 0 |
|--------------------+---------------------------------------|
| 1 | 1 |
|--------------------+---------------------------------------|
| 2 | 2 |
|--------------------+---------------------------------------|
| 3 | 3 |
|--------------------+---------------------------------------|
| 4 | 4 |
|--------------------+---------------------------------------|
| 5 | 5 |
|--------------------+---------------------------------------|
| 6 | 6 |
|--------------------+---------------------------------------|
| Invalid | 7-9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP1 |
|---------------------------------------+--------------------|
| AUI transceiver via DB-15 | Open |
|---------------------------------------+--------------------|
| RG-58A/U 50ohm coaxial | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| 1 | Green | On | Connected to Ethernet via |
| | | | RG-58A/U 50ohm coaxial |
|------+--------+----------+---------------------------------|
| 1 | Green | Off | Not connected to Ethernet via |
| | | | RG-58A/U 50ohm coaxial |
|------+--------+----------+---------------------------------|
| 2 | Green | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| 2 | Green | Off | Data is not being received |
|------+--------+----------+---------------------------------|
| 3 | Green | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| 3 | Green | Off | Data is not being received |
|------+--------+----------+---------------------------------|
| 4 | Green | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| 4 | Green | Off | Data is not being received |
|------+--------+----------+---------------------------------|
| 5 | Green | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| 5 | Green | Off | Data is not being received |
|------+--------+----------+---------------------------------|
| 6 | Green | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| 6 | Green | Off | Data is not being transmitted |
|------+--------+----------+---------------------------------|
| 7 | Green | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| 7 | Green | Off | Data is not being transmitted |
|------+--------+----------+---------------------------------|
| 8 | Green | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| 8 | Green | Off | Data is not being transmitted |
|------+--------+----------+---------------------------------|
| 9 | Green | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| 9 | Green | Off | Data is not being transmitted |
|------+--------+----------+---------------------------------|
| 10 | Green | On | Connected to Ethernet via |
| | | | 15-pin transceiver port |
|------+--------+----------+---------------------------------|
| 10 | Green | Off | Not connected to Ethernet via |
| | | | 15-pin transceiver port |
|------------------------------------------------------------|
| Note: |
| |
| When data is being received, LEDs 2 through 5 will light |
| in sequence. When data is being transmitted, LEDs 9 |
| through 6 will light in sequence. |
+------------------------------------------------------------+
