# DIGITAL EQUIPTMENT CORPORATION
ATMWORKS 351 ADAPTER UTP
Card Type Network adapter card
NIC Type ATM
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 155Mbps
Topology Star
Wiring Type RJ-45 unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

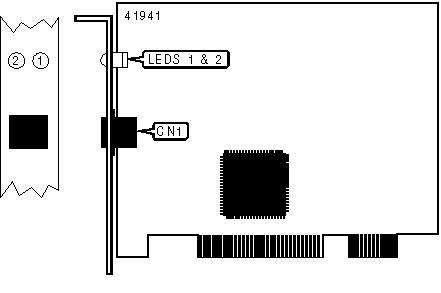

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-----------------------------------------+------------------|
| RJ-45 unshielded twisted pair connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LEDS |
|------------------------------------------------------------|
| LED 1 | LED 2 | Condition |
|-----------+---------+--------------------------------------|
| Off | Off | Power is not being received or ARM |
| | | works driver is not loaded |
|-----------+---------+--------------------------------------|
| Green | Any | ATM works driver is loaded. Module |
| | status | status OK |
|-----------+---------+--------------------------------------|
| Amber | Amber | Adapter is in reset mode |
|-----------+---------+--------------------------------------|
| Amber | Off | Diagnostics failed |
|-----------+---------+--------------------------------------|
| Green/Off | Green | Network connection is good |
|-----------+---------+--------------------------------------|
| Green/Off | Amber | Network connection is broken |
|------------------------------------------------------------|
| Note: LED 1 is the module status indicator. LED 2 is the |
| network status indicator. LEDs are on when displaying a |
| color. |
+------------------------------------------------------------+
