       # DIGITAL EQUIPMENT CORPORATION

          EB143

          Card Type              Network Interface Card
          NIC Type               Ethernet
          Maximum Onboard Memory Unidentified
          Boot ROM               Available
          Network Transfer Rate  100Mbps/10Mbps
          Topology               Star
          Wiring Type            Unshielded twisted pair
          Data Bus               32-bit PCI

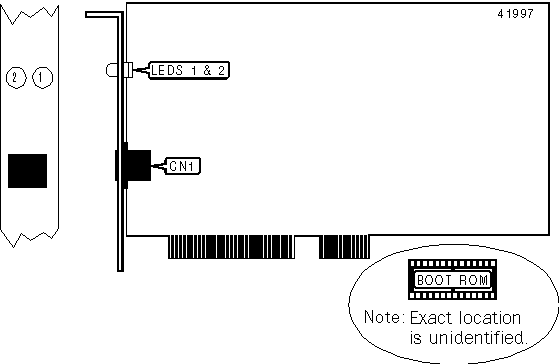

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | UTP connector                 |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color  | Status |             Condition             |
          |------+--------+--------+-----------------------------------|
          | LED1 | Green  |   On   |    Network connection is good     |
          |------+--------+--------+-----------------------------------|
          | LED1 | Green  |  Off   |   Network connection is broken    |
          |------+--------+--------+-----------------------------------|
          | LED2 | Yellow |   On   |           Data is being           |
          |      |        |        |       transmitted/received        |
          |------+--------+--------+-----------------------------------|
          | LED2 | Yellow |  Off   |         Data is not being         |
          |      |        |        |       transmitted/received        |
          +------------------------------------------------------------+
