# DIGITAL EQUIPMENT CORPORATION
UTP SAS CONTROLLER (DEFTA-UA)
Card Type Network Interface Card
NIC Type FDDI
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus 96-pin turbo channel connection
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| UTP connector | CN1 | 96-pin turbo | CN3 |
| | | channel connector | |
|-----------------------+-------+--------------------+-------|
| 50-pin SCSI connector | CN2 | | |
| - internal | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| Note: Function of LED’s is unidentified. |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+

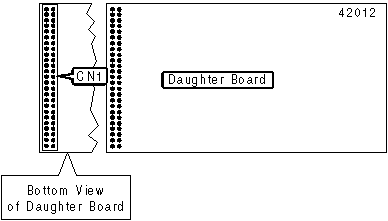

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|----------------------------------+-------------------------|
| 50-pin SCSI connector - internal | CN1 |
+------------------------------------------------------------+
