# CABLETRON SYSTEMS, INC.
ST-500-03
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star, Linear Bus
Wiring Type Unshielded twisted pair
Data Bus External

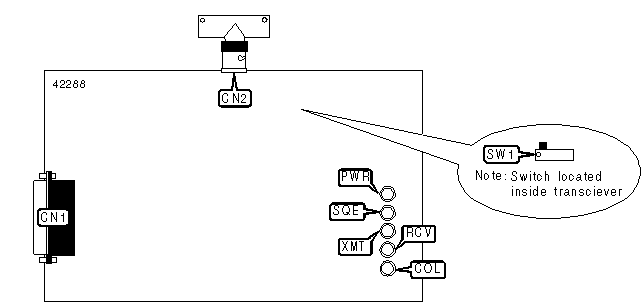

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| AUI transceiver via | CN1 | BNC thin-net tap | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | SQE test function disabled | SW1 | Off |
|---+------------------------------------+-------+-----------|
| | SQE test function enabled | SW1 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | Off | Power is off |
|-----+--------------+----------+----------------------------|
| SQE | Unidentified | On | Signal Quality Error test |
| | | | function is enabled |
|-----+--------------+----------+----------------------------|
| SQE | Unidentified | Off | Signal Quality Error test |
| | | | function is disabled |
|-----+--------------+----------+----------------------------|
| XMT | Unidentified | Blinking | Data is being transmitted |
|-----+--------------+----------+----------------------------|
| XMT | Unidentified | Off | Data is not being |
| | | | transmitted |
|-----+--------------+----------+----------------------------|
| RCV | Unidentified | Blinking | Data is being received |
|-----+--------------+----------+----------------------------|
| RCV | Unidentified | Off | Data is not being received |
|-----+--------------+----------+----------------------------|
| CLN | Unidentified | Blinking | Collision detected on |
| | | | network |
|-----+--------------+----------+----------------------------|
| CLN | Unidentified | Off | No collision detected on |
| | | | network |
+------------------------------------------------------------+
