       # COMPAQ COMPUTER CORPORATION

          NETELLIGENT 100 FDDI PCI DAS UTP

          Card Type              Network Interface Card
          NIC Type               FDDI
          Maximum Onboard Memory Unidentified
          Boot ROM               Not available
          Network Transfer Rate  100Mbps
          Topology               Ring
          Wiring Type            RJ-45 Unshielded twisted pair
          Data Bus               32-bit PCI

   IMG IMG 1


          +------------------------------------------------------------+

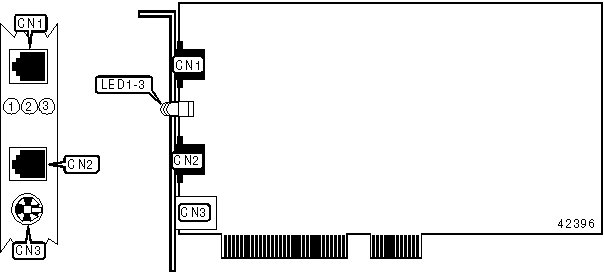

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Function     | Label |         Function         | Label |
          |-----------------+-------+--------------------------+-------|
          | RJ45 connector  |  CN1  | Optical bypass connector |  CN3  |
          |-----------------+-------+--------------------------+-------|
          | RJ45 connector  |  CN2  |                          |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED1   |   LED2   |  LED3   |          Condition          |
          | (Green) | (Yellow) | (Green) |                             |
          |---------+----------+---------+-----------------------------|
          |   Off   |   Off    |   Off   |      Driver not loaded      |
          |---------+----------+---------+-----------------------------|
          |   Off   |    On    |   Off   | Station management code is  |
          |         |          |         | running, controller is not  |
          |         |          |         |  connected to the network   |
          |---------+----------+---------+-----------------------------|
          |   On    |   Off    |   Off   |   Controller is active at   |
          |         |          |         |           port B            |
          |---------+----------+---------+-----------------------------|
          |   Off   |   Off    |   On    |   Controller is active at   |
          |         |          |         |           port A            |
          |---------+----------+---------+-----------------------------|
          |   On    |   Off    |   On    | Controller is ready for use |
          +------------------------------------------------------------+
