# COMPAQ COMPUTER CORPORATION
NETELLIGENT 100 FDDI EISA SAS UTP
Card Type Network Interface Card
NIC Type FDDI
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 100Mbps
Topology Ring
Wiring Type RJ-45 Unshielded twisted pair
Data Bus 32-EISA
IMG IMG 1
+------------------------------------------------------------+

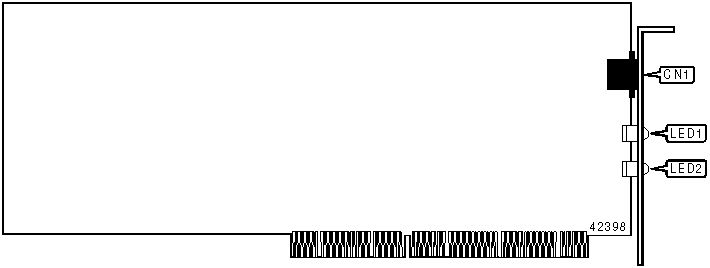

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-----------------------------------------+------------------|
| RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED1 | LED2 | Condition |
| (Green) | (Yellow) | |
|---------+----------+---------------------------------------|
| Off | Off | Driver not loaded |
|---------+----------+---------------------------------------|
| Off | On | Station management code is running, |
| | | controller is not connected to the |
| | | network |
|---------+----------+---------------------------------------|
| On | Off | Controller is ready for use |
+------------------------------------------------------------+
