# GATEWAY COMMUNICATIONS, INC.
G/ETHERTWIST MC ADAPTER
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit MCA
Topology Star
Wiring Type Shielded/Unshielded twisted pair
AUI transceiver via DB-15 port

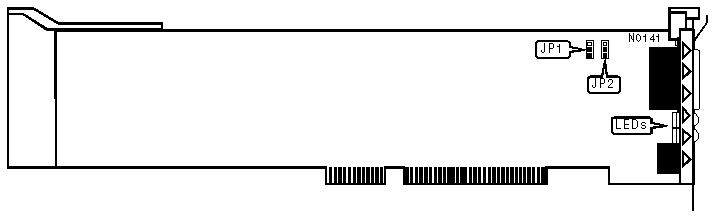

IMG IMG 1
+------------------------------------------------------------+
| LINK INTEGRITY TEST |
|------------------------------------------------------------|
| Setting | JP31 |
|-----------------------------+------------------------------|
| » | Enabled | Pins 1 & 2 Closed |
|----------+------------------+------------------------------|
| | Disabled | Pins 2 & 3 Closed |
|------------------------------------------------------------|
| Note:Link Integrity is only used with 10Base-T wiring. |
| When using an AUI transciever, the test should be |
| disabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE SELECT |
|------------------------------------------------------------|
| Type | JP1 |
|--------------------------------------+---------------------|
| » | Shielded/Unshielded twisted pair | Pins 1 & 2 Closed |
|---+----------------------------------+---------------------|
| | AUI transceiver via DB-15 port | Pins 2 & 3 Closed |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| Status | Condition |
|--------------------------+---------------------------------|
| Jabber LED (1) on (Red) | Adapter is continually sending |
| | random data |
|--------------------------+---------------------------------|
| Link test LED (2) on | Network connection good |
| (Green) | |
|--------------------------+---------------------------------|
| Link test LED (2) blinks | Wiring error, disabled test |
| (Green) | jumper |
|--------------------------+---------------------------------|
| Transmit LED (3) blinks | Data is being transmitted |
| (Red) | |
|--------------------------+---------------------------------|
| Receive LED (4) blinks | Data is being received |
| (Red) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS NOTES |
|------------------------------------------------------------|
| Different drivers must be used for the National & the |
| Fujitsu chipset cards, & are not interchangeable. Fujitsu |
| adapters may be used for either 8 or 16 bit Fujitsu cards. |
| While the National chipset cards require a different |
| driver for an 8 or 16 bit card. |
+------------------------------------------------------------+
