# FARALLON COMPUTING, INC.
PHONENET PC CARD II
NIC Type LocalTalk
Transfer Rate 230.4Kbps
Data Bus 8-bit ISA
Topology Star
Linear bus
Wiring Type Unshielded twisted pair via PhoneNET DB-9 to
twisted pair connector
Boot ROM Not available

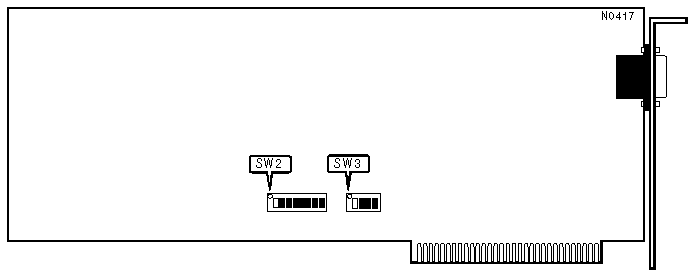

IMG IMG 1
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
|Address |SW2/1 |SW2/2 |SW2/3 |SW2/4 |SW2/5|SW2/6|SW2/7|SW2/8|
|--------+------+------+------+------+-----+-----+-----+-----|
|» |240h | Off | On | Off | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |200h | Off | On | On | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |260h | Off | On | Off | Off | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |2A0h | Off | On | On | Off | Off | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |320h | Off | On | On | Off | On | Off | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |340h | On | Off | On | Off | On | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT REQUEST |
|------------------------------------------------------------|
| IRQ | SW3/1 | SW3/2 | SW3/3 |
|-------------------+-------------+-------------+------------|
| » | 5 | Off | Off | On |
|---+---------------+-------------+-------------+------------|
| | 3 | On | Off | Off |
|---+---------------+-------------+-------------+------------|
| | 4 | Off | On | Off |
|---+---------------+-------------+-------------+------------|
| | Polled I/O | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Switch | Setting |
|------------------------------+-----------------------------|
| SW3/4 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS NOTES |
|------------------------------------------------------------|
| This card allows interconnection of Apples/Macs and IBM PC |
| compatibles. |
+------------------------------------------------------------+
