# FARALLON COMPUTING, INC.
ETHERMAC
NIC Type: Ethernet
Transfer Rate: 10Mbps
Data Bus: 32-Bit NuBus (Apple)
Topology: Linear Bus
Star
Wiring Type AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Shielded/Unshielded twisted pair
Boot ROM Not Available

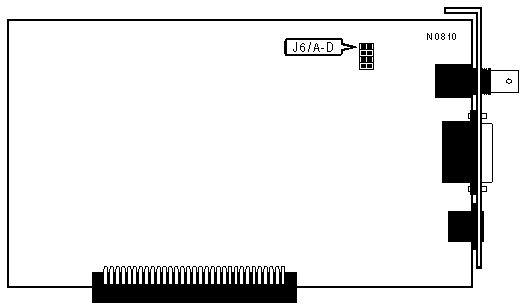

IMG IMG 1
+------------------------------------------------------------+
| CABLE TYPE - J6 |
|------------------------------------------------------------|
| Type |Jumper A|Jumper B|Jumper C|Jumper D|
|------------------------+--------+--------+--------+--------|
|ยป| Automatically detect | Open | Open | Open | Closed |
| | cable type | | | | |
|-+----------------------+--------+--------+--------+--------|
| | AUI transceiver via | Open | Closed | Open | Open |
| | DB-15 port | | | | |
|-+----------------------+--------+--------+--------+--------|
| |RG-58A/U 50ohm coaxial| Closed | Open | Open | Open |
|-+----------------------+--------+--------+--------+--------|
| | Shielded/Unshielded | Open | Open | Closed | Open |
| | twisted pair | | | | |
+------------------------------------------------------------+
