# EFA CORPORATION
EFA 150 SVC
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus VESA local bus
Topology Linear Bus
Star
Wiring Type RG-58A/U 50ohm coaxial
Unshielded twisted pair
Boot ROM Available (Location unidentified)

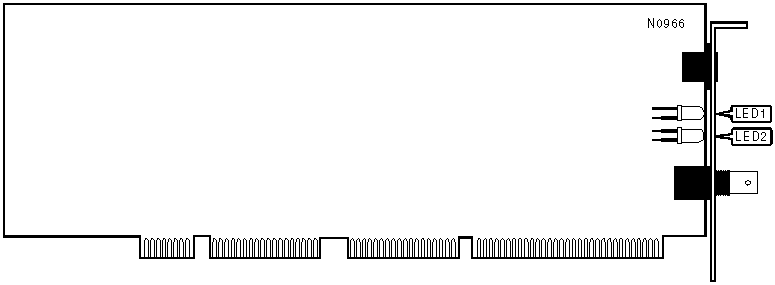

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Orange | On | Data is being |
| | | | transmitted/received |
|------+--------+--------+-----------------------------------|
| LED! | Orange | Off | Data is not being |
| | | | transmitted/received |
|------+--------+--------+-----------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
