       # EFA CORPORATION

          EFA 207 SPC (RJ-45 AND BNC)

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         PCMCIA
          Topology         Linear Bus/Star
          Wiring Type      Unshielded twisted pair

                           RG-58A/U 50ohm coaxial
          Boot ROM         Not available

   IMG IMG 1


          +------------------------------------------------------------+

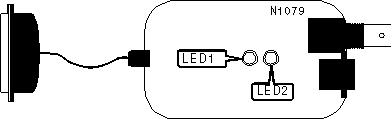

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color |  Status  |            Condition             |
          |------+-------+----------+----------------------------------|
          | LED1 | Green | Blinking |          Data is being           |
          |      |       |          |       transmitted/received       |
          |------+-------+----------+----------------------------------|
          | LED1 | Green |   Off    |        Data is not being         |
          |      |       |          |       transmitted/received       |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |    On    |    Network connection is good    |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |   Off    |   Network connection is broken   |
          |------------------------------------------------------------|
          | Note: LED2 monitors only the RJ-45 connection to the       |
          | network.                                                   |
          +------------------------------------------------------------+
