# EDIMAX COMPUTER COMPANY
EP-3020A (UTP)
Card Type Ethernet
Data Bus Parallel
Maximum network Rate 10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

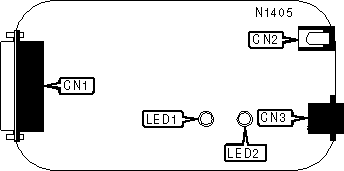

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------+-------+----------------------------+-------|
| Parallel port | CN1 | Unshielded twisted pair | CN3 |
| | | port | |
|---------------+-------+----------------------------+-------|
| DC power port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | Blinking | Data is transmitted/received |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | Data is not being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED2 | Red | On | Power is on |
|------+-------+----------+----------------------------------|
| LED2 | Red | Off | Power is off |
+------------------------------------------------------------+
