# FARALLON COMPUTING, INC.
FAST ETHERTX-10/100 (NUBUS)
Card Type Ethernet
Data Bus NuBus
Maximum network Rate 10Mbps/100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available (location unidentified)

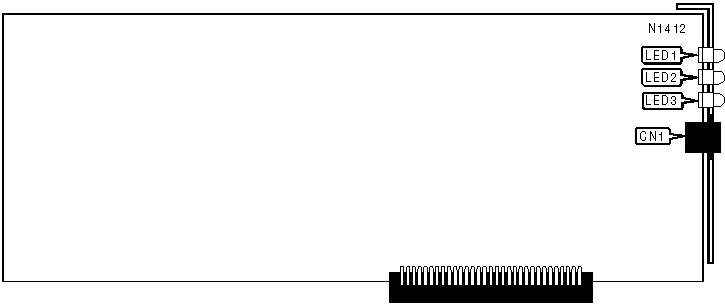

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
| | | | (10Mbps) |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
| | | | (10Mbps) |
|------+--------+----------+---------------------------------|
| LED3 | Green | On | Network connection is good |
| | | | (100Mbps) |
|------+--------+----------+---------------------------------|
| LED3 | Green | Blinking | Polarity is reversed (100Mbps) |
|------+--------+----------+---------------------------------|
| LED3 | Green | Off | Network connection is broken |
| | | | (100Mbps) |
+------------------------------------------------------------+
