# HEWLETT-PACKARD COMPANY
HP J2585B
NIC Type Ethernet,
Network Transfer Rate 10/100Mbps
Data Bus 32-bit PCI
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available (location unidentified)

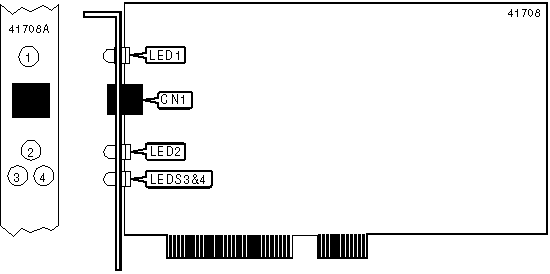

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+---------+-----------------------------------------|
| LED1 | On | 100Mbps connection is selected |
|--------+---------+-----------------------------------------|
| LED1 | Off | 100Mbps connection is not selected |
|--------+---------+-----------------------------------------|
| LED2 | On | 10Mbps connection is selected |
|--------+---------+-----------------------------------------|
| LED2 | Off | 10Mbps connection is not selected |
|--------+---------+-----------------------------------------|
| LED3 | On | Data is being transmitted/received |
|--------+---------+-----------------------------------------|
| LED3 | Off | Data is not being transmitted/received |
|--------+---------+-----------------------------------------|
| LED4 | On | Network connection is good |
|--------+---------+-----------------------------------------|
| LED4 | Off | Network connection is broken |
+------------------------------------------------------------+
