# HEWLETT-PACKARD COMPANY
HP J2970A
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available (location unidentified)

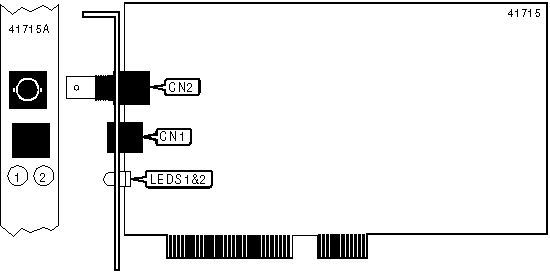

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Unshielded twisted pair | CN1 | RG-58A/U 50ohm | CN2 |
| port | | coaxial port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+---------+-----------------------------------------|
| LED1 | On | Network connection is good |
|--------+---------+-----------------------------------------|
| LED1 | Off | Network connection is broken |
|--------+---------+-----------------------------------------|
| LED2 | On | Data is being transmitted/received |
|--------+---------+-----------------------------------------|
| LED2 | Off | Data is not being transmitted/received |
+------------------------------------------------------------+
