# HEWLETT-PACKARD COMPANY
HP 27252A
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus
Wiring Type DB-15 port AUI transceiver via
RG-58A/U 50ohm coaxial
Boot ROM Available

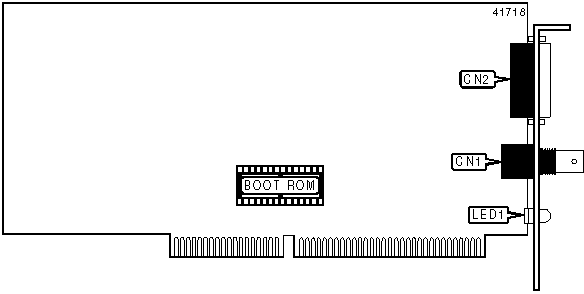

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| RG-58A/U 50ohm | CN1 | AUI transceiver via DB-15 | CN2 |
| coaxial | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+----------+----------------------------------------|
| LED1 | On | 10Base-2 network connection is good |
|--------+----------+----------------------------------------|
| LED1 | Off | 10Base-2 network connection is broken |
+------------------------------------------------------------+
