# HEWLETT-PACKARD COMPANY
HP 27247B
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM Available
IMG IMG 1
+------------------------------------------------------------+

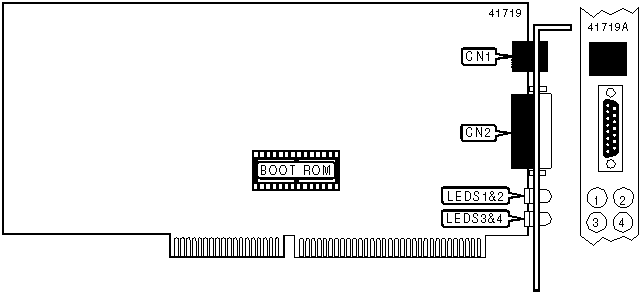

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | CN1 | AUI transceiver via | CN2 |
| pair port | | DB-15 port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|---------+----------+---------------------------------------|
| LED1 | On | 10Base-5 is active |
|---------+----------+---------------------------------------|
| LED1 | Off | 10Base-5 is not active |
|---------+----------+---------------------------------------|
| LED2 | On | Network connection is good |
|---------+----------+---------------------------------------|
| LED2 | Off | Network connection is broken |
|---------+----------+---------------------------------------|
| LED3 | On | Data is being transmitted |
|---------+----------+---------------------------------------|
| LED3 | Off | Data is not being transmitted |
|---------+----------+---------------------------------------|
| LED4 | On | Data is being received |
|---------+----------+---------------------------------------|
| LED4 | Off | Data is not being received |
+------------------------------------------------------------+
