# EFA CORPORATION
EFA350
Card Type Ethernet repeater
Network Transfer Rate 10Mbps
Topology Linear Bus
Wire Type AUI via DB-15 port
RG-58A/U 50ohm coaxial

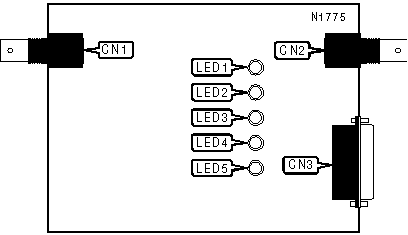

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| RG-58A/U 50ohm | CN1 | AUI via DB-15 port | CN3 |
| coaxial connector | | | |
|-----------------------+-------+--------------------+-------|
| RG-58A/U 50ohm | CN2 | | |
| coaxial connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | On | Power is on |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | Power is off |
|------+--------+----------+---------------------------------|
| LED2 | Green | Blinking | Network traffic detected |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network traffic not detected |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Blinking | Network collision detected |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Off | Network collision not detected |
|------+--------+----------+---------------------------------|
| LED4 | Orange | Blinking | Network jabber detected |
|------+--------+----------+---------------------------------|
| LED4 | Orange | Off | Network jabber not detected |
|------+--------+----------+---------------------------------|
| LED5 | Orange | On | Maximum network transmission |
| | | | time exceeded or multiple |
| | | | collisions detected |
|------+--------+----------+---------------------------------|
| LED5 | Orange | Off | Transmission time normal and |
| | | | multiple collisions not |
| | | | detected |
+------------------------------------------------------------+
