# FOCUS ENHANCEMENTS, INC.
ETHERLAN LC, ETHERLAN LC/FPU
NIC Type Ethernet
Chip Set National Semiconductor DP83901
Maximum Onboard Memory 64KB SRAM
NPU Options Motorola 68882
Network Transfer Rate 10Mbps
Data Bus LC PDS
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
Boot ROM Not available

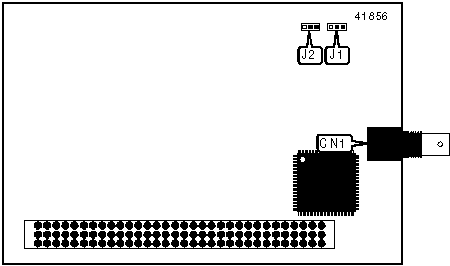

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|----------------------------------+-------------------------|
| RG-58A/U 50ohm coaxial connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|---------------------------------------+-------+------------|
| » | Factory configured - do not alter | J1 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J2 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SRAM CONFIGURATION |
|------------------------------------------------------------|
| The EtherLAN LC can have 16KB or 64KB of SRAM. The |
| location and configuration of this memory is unidentified. |
+------------------------------------------------------------+
