# EDIMAX COMPUTER COMPANY
ET-4000T
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star
Wiring Type RJ-45 Unshielded twisted pair
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

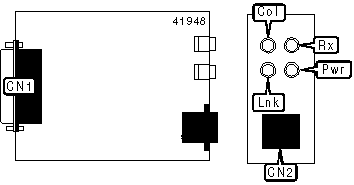

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RJ-45 UTP connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------+----------+----------------------------------|
| Lnk | Green | On | UTP link is good |
|-----+--------+----------+----------------------------------|
| Lnk | Green | Off | UTP link is broken |
|-----+--------+----------+----------------------------------|
| Col | Orange | Blinking | Collision detected on network |
|-----+--------+----------+----------------------------------|
| Col | Orange | Off | No collision detected on network |
|-----+--------+----------+----------------------------------|
| Pwr | Yellow | On | Power is on |
|-----+--------+----------+----------------------------------|
| Pwr | Yellow | Off | Power is off |
|-----+--------+----------+----------------------------------|
| Rx | Red | Blinking | Data is being received |
|-----+--------+----------+----------------------------------|
| Rx | Red | Off | Data is not being received |
+------------------------------------------------------------+
