# EFFICIENT NETWORKS, INC.
ENI-155S-U5-C, ENI-155S-U5-S
Card Type Network Interface Card
NIC Type ATM
Maximum Onboard 512KB (ENI-155S-U5-C) / 2MB
Memory (ENI-155S-U5-S)
Boot ROM Not available
Network Transfer 155Mbps
Rate
Topology Star
Wiring Type Unshielded twisted pair
Data Bus SBus
IMG IMG 1
+------------------------------------------------------------+

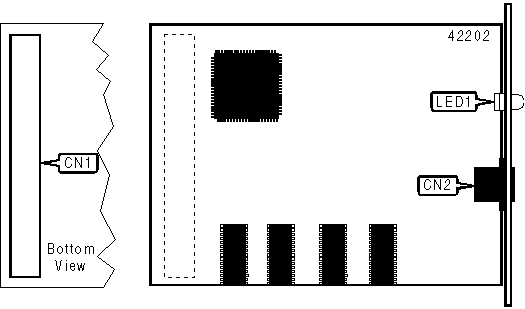

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| SBus interface | CN1 | UTP via RJ-45 | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | On | SONET/SDH connection is |
| | | | good |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | Off | SONET/SDH connection is |
| | | | broken |
+------------------------------------------------------------+
