# EFFICIENT NETWORKS, INC.
ENI-155E-MF-C, ENI-155E-MF-S
Card Type Network Interface Card
NIC Type ATM
Maximum Onboard 512KB (ENI-155E-MF-C) / 2MB
Memory (ENI-155E-MF-S)
Boot ROM Not available
Network Transfer 155Mbps
Rate
Topology Star
Wiring Type Fiber optic cable
Data Bus EISA
IMG IMG 1
+------------------------------------------------------------+

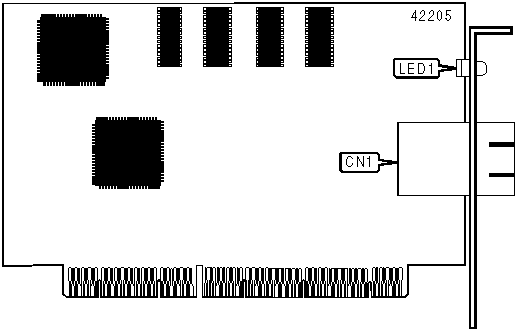

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Fiber optic connector (SC) | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | On | Network connection is good |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | Off | Network connection is |
| | | | broken |
+------------------------------------------------------------+
