# GLOBAL DATA SUPPLY
10/100 FAST ETHERNET PCI ADAPTER
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 10/100Mbps
Topology Star, linear bus
Wiring Type RJ-45 Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

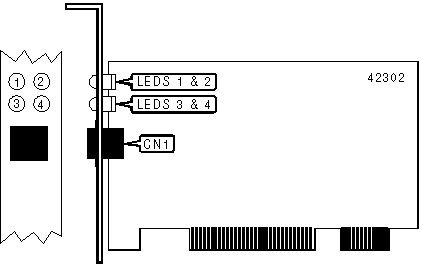

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|------------------------------------------+-----------------|
| RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | On | Port is operating at 100Mbps |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | Port is not operating at 100Mbps |
|------+-------+----------+----------------------------------|
| LED2 | Green | On | Network connection is good |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------+-------+----------+----------------------------------|
| LED3 | Green | Blinking | Traffic detected on network |
|------+-------+----------+----------------------------------|
| LED3 | Green | Off | Traffic not detected on network |
|------+-------+----------+----------------------------------|
| LED4 | Green | On | Full-duplex mode is on |
|------+-------+----------+----------------------------------|
| LED4 | Green | Off | Full-duplex mode is off |
+------------------------------------------------------------+
