# GLOBAL DATA SUPPLY
THICK ETHERNET TRANSCEIVER-F
Device Type Transceiver
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10Mbps
Topology Star, linear bus
Wiring Type Fiber optic cable (ST)
AUI transceiver via DB-15 port
Data Bus External

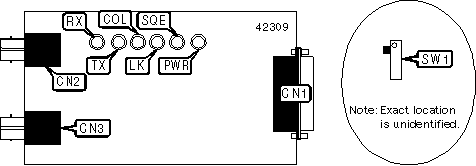

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| AUI transceiver via | CN1 | Fiber optic | CN3 |
| DB-15 | | connector (ST) - | |
| | | receive | |
|-------------------------+-------+------------------+-------|
| Fiber optic connector | CN2 | | |
| (ST) - transmit | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | SQE test function disabled | SW1 | Off |
|---+------------------------------------+-------+-----------|
| | SQE test function enabled | SW1 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+----------+----------------------------|
| RX | Unidentified | Blinking | Data is being received |
|-----+--------------+----------+----------------------------|
| RX | Unidentified | Off | Data is not being received |
|-----+--------------+----------+----------------------------|
| TX | Unidentified | Blinking | Data is being transmitted |
|-----+--------------+----------+----------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | Blinking | Collision detected on |
| | | | network |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | Off | No collision detected on |
| | | | network |
|-----+--------------+----------+----------------------------|
| LK | Unidentified | Blinking | UTP link is good |
|-----+--------------+----------+----------------------------|
| LK | Unidentified | Off | UTP link is broken |
|-----+--------------+----------+----------------------------|
| SQE | Unidentified | On | SQE function is enabled |
|-----+--------------+----------+----------------------------|
| SQE | Unidentified | Off | SQE function is disabled |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | Off | Power is off |
+------------------------------------------------------------+
