       # FORE SYSTEMS, INC.

          FORERUNNER LE 25 MBPS ADAPTER

          Card Type              Network Interface Card
          NIC Type               ATM
          Maximum Onboard Memory 128Kb RAM
          Boot ROM               Not available
          Network Transfer Rate  25Mbps
          Topology               Star
          Wiring Type            RJ-45 Unshielded twisted pair
          Data Bus               32-bit PCI

   IMG IMG 1


          +------------------------------------------------------------+

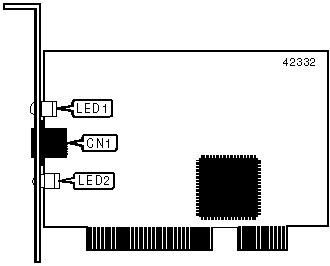

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | RJ-45 UTP connector           |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color  | Status |             Condition             |
          |------+--------+--------+-----------------------------------|
          | LED1 | Green  |   On   |      Data is being received       |
          |------+--------+--------+-----------------------------------|
          | LED1 | Green  |  Off   |    Data is not being received     |
          |------+--------+--------+-----------------------------------|
          | LED1 |  Red   |   On   |   Network connection is broken    |
          |------+--------+--------+-----------------------------------|
          | LED2 | Green  |   On   |     Data is being transmitted     |
          |------+--------+--------+-----------------------------------|
          | LED2 | Green  |  Off   |   Data is not being transmitted   |
          |------+--------+--------+-----------------------------------|
          | LED2 | Yellow |   On   | Alarm condition declared (trouble |
          |      |        |        |    with the receiving device)     |
          +------------------------------------------------------------+
