# FORE SYSTEMS, INC.
FORERUNNER HPA-200E (SC CONNECTOR)
Card Type Network Interface Card
NIC Type ATM
Maximum Onboard Memory Unidentified
Network Transfer Rate Unidentified
Topology Star
Wiring Type Fiber optic
Data Bus 32-bit EISA

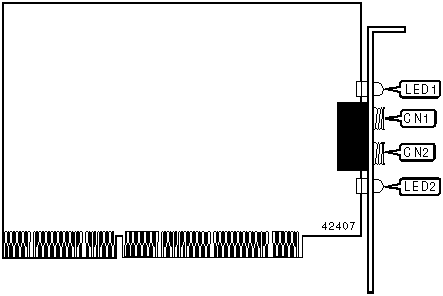

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| Fiber optic SC | CN1 | Fiber optic SC connector | CN2 |
| connector for | | for transmit line | |
| receive line | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Data is being transmitted |
|------+--------+--------+-----------------------------------|
| LED1 | Off | On | Data is not being received |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | On | SONET alarm condition declared |
|------+--------+--------+-----------------------------------|
| LED2 | Green | On | Data is being received |
|------+--------+--------+-----------------------------------|
| LED2 | Off | On | Data is not being received |
|------+--------+--------+-----------------------------------|
| LED2 | Red | On | No carrier |
+------------------------------------------------------------+
