# HEWLETT-PACKARD COMPANY
HP 10BT/100TX NIGHTDIRECTOR/100
Card Type Network Interface Card
NIC Type Ethernet
Boot ROM Available
Network Transfer Rate 100Mbps/10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

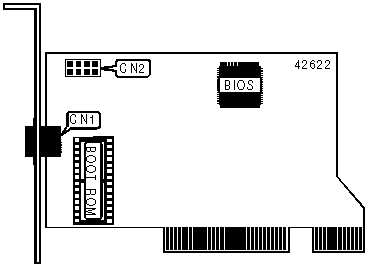

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| RJ-45 UTP connector | CN1 | External start | CN2 |
| | | connector | |
+------------------------------------------------------------+
