# IBM CORPORATION
PC NETWORK ADAPTER (BROADBAND)
NIC Type Broadband
Transfer Rate Unidentified
Data Bus 8-bit ISA
Topology Star
Wiring Type RG-11A/U
RG-59A/U coaxial
Boot ROM Not Available

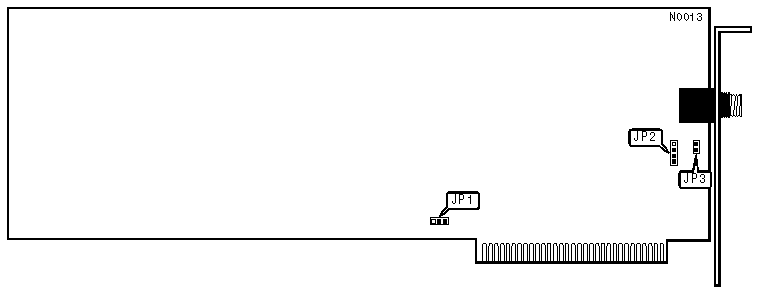

IMG IMG 1
+------------------------------------------------------------+
| INTERRUPT REQUEST SELECTION |
|------------------------------------------------------------|
| IRQ | JP1 |
|----------------------------+-------------------------------|
| 2 | Pins 2 & 3 Closed |
|----------------------------+-------------------------------|
| 3 | Pins 1 & 2 Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP2 |
|----------------------------+-------------------------------|
| 360h | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 368h | Pins 1 & 2, 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ROM BIOS CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP3 |
|---------------------------------+--------------------------|
| ยป | Enabled | Closed |
|----+----------------------------+--------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| The DMA channel is permanently fixed at 3. If two adapters |
| will be installed into one station then disable the ROM |
| BIOS on the second adapter. |
+------------------------------------------------------------+
