       # KATRON TECHNOLOGIES, INC.

          EISA 32-BIT MASTER BUS ETHERNET ADAPTER

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         32-bit EISA
          Topology         Linear bus
          Wiring Type      Shielded/Unshielded Twisted Pair

                           AUI transceiver via DB-15 port

                           RG-58A/U 50ohm coaxial
          Boot ROM         Available

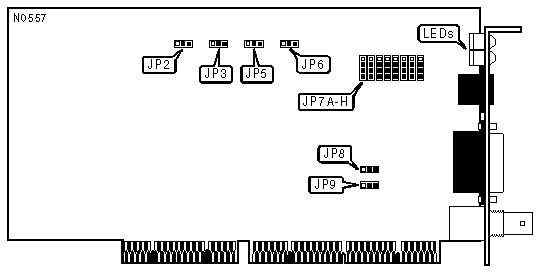

   IMG IMG 1


          +------------------------------------------------------------+
          |                FACTORY CONFIGURED SETTINGS                 |
          |------------------------------------------------------------|
          |           Jumper           |            Setting            |
          |----------------------------+-------------------------------|
          |            JP2             |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |            JP3             |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      NETWORK VERSION                       |
          |------------------------------------------------------------|
          |                Version                 |        JP5        |
          |----------------------------------------+-------------------|
          | » |  Ethernet Version 2 (can use all   | Pins 1 & 2 closed |
          |   |               ports)               |                   |
          |---+------------------------------------+-------------------|
          |   | Ethernet Version 1 (uses AUI port  | Pins 2 & 3 closed |
          |   |               only)                |                   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    LINK INTEGRITY TEST                     |
          |------------------------------------------------------------|
          |            Setting            |            JP6             |
          |-------------------------------+----------------------------|
          | »         |      Enabled      |     Pins 1 & 2 closed      |
          |-----------+-------------------+----------------------------|
          |           |     Disabled      |     Pins 2 & 3 closed      |
          |------------------------------------------------------------|
          | Note:The link integrity test is only valid when the cable  |
          | type is unshielded twisted pair.                           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         CABLE TYPE                         |
          |------------------------------------------------------------|
          |                 Type                 |         JP7         |
          |--------------------------------------+---------------------|
          |   | Shielded/Unshielded Twisted Pair |  Pins 1 & 2 closed  |
          |---+----------------------------------+---------------------|
          |   |  AUI transceiver via DB-15 port  |  Pins 2 & 3 closed  |
          |---+----------------------------------+---------------------|
          | » |      RG-58A/U 50ohm coaxial      |  Pins 3 & 4 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       SEGMENT LENGTH                       |
          |------------------------------------------------------------|
          |         Maximum Length         |            JP8            |
          |--------------------------------+---------------------------|
          | »         |     185 meters     |     Pins 1 & 2 closed     |
          |-----------+--------------------+---------------------------|
          |           |     300 meters     |     Pins 2 & 3 closed     |
          |------------------------------------------------------------|
          |   Note:Segment length is the total length of cable between |
          |   the two farthest cards on the segment. Each card on the  |
          |   segment must have this option set the same.              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 ONBOARD TERMINATOR                  |      |
          |-----------------------------------------------------|      |
          |       Setting        |             JP9              |      |
          |----------------------+------------------------------|      |
          | » |     Disabled     |      Pins 1 & 2 closed       |      |
          |---+------------------+------------------------------|      |
          |   |     Enabled      |      Pins 2 & 3 closed       |      |
          |---+--------------------------------------------------------|
          |   | Notes:If the card is on either end of a linear bus     |
          |   | network segment, the onboard terminator may be used    |
          |   | instead of using an external terminator.               |
          +------------------------------------------------------------+

   IMG IMG 2


          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color  |  Status  |            Condition            |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  |    On    |  Link is correctly configured   |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  | Blinking | Link is incorrectly configured  |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  |   Off    |   Twisted pair connection not   |
          |      |        |          |   used/Link test is disabled    |
          |------+--------+----------+---------------------------------|
          | LED2 | Yellow |    On    |    Twisted pair polarity is     |
          |      |        |          |     reversed and corrected      |
          |------+--------+----------+---------------------------------|
          | LED2 | Yellow |   Off    |    Twisted pair polarity is     |
          |      |        |          | correct/Twisted pair connection |
          |      |        |          |            not used             |
          |------+--------+----------+---------------------------------|
          | LED3 | Green  |    On    |   Card is not powered or has    |
          |      |        |          |             failed              |
          |------+--------+----------+---------------------------------|
          | LED3 | Green  | Blinking |  Data is being transmitted or   |
          |      |        |          |            received             |
          |------+--------+----------+---------------------------------|
          | LED3 | Green  |   Off    |  Data is not being transmitted  |
          |      |        |          |           or received           |
          |------+--------+----------+---------------------------------|
          | LED4 | Yellow |    On    |  Collision detected on network  |
          |------+--------+----------+---------------------------------|
          | LED4 | Yellow |   Off    |    No collisions detected on    |
          |      |        |          |             network             |
          +------------------------------------------------------------+
