# INVISIBLE SOFTWARE, INC.
ETHERNET/16 NETWORK ADAPTER
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear bus
Wiring Type RG58A/U 50ohm coaxial
Boot ROM Available

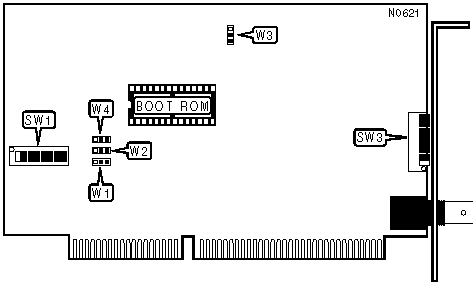

IMG IMG 1
+------------------------------------------------------------+
| INTERRUPT SETTINGS |
|------------------------------------------------------------|
| IRQ | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
|----------+------------+------------+-----------+-----------|
| 2 | Off | Off | Off | On |
|----------+------------+------------+-----------+-----------|
| 3 | Off | Off | On | Off |
|----------+------------+------------+-----------+-----------|
| 4 | Off | On | Off | Off |
|----------+------------+------------+-----------+-----------|
| 11 | On | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOOT ROM ADDRESS |
|------------------------------------------------------------|
| Address | SW1/5 | SW1/6 |
|--------------------+-------------------+-------------------|
| CC00h | On | On |
|--------------------+-------------------+-------------------|
| D400h | On | Off |
|--------------------+-------------------+-------------------|
| DC00h | Off | On |
|--------------------+-------------------+-------------------|
| E400h | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS |
|------------------------------------------------------------|
| Address | SW1/7 |
|-------------------------------+----------------------------|
| 300-31Fh | On |
|-------------------------------+----------------------------|
| 340-35Fh | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS TIMING CONFIGURATION |
|------------------------------------------------------------|
| Timing | SW1/8 |
|------------------------------+-----------------------------|
| Normal | On |
|------------------------------+-----------------------------|
| Early | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ROM SIZE |
|------------------------------------------------------------|
| Size | W1 | W4 |
|------------------+--------------------+--------------------|
| 16KB | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 32KB | Pins 2 & 3 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUFFER RAM SIZE |
|------------------------------------------------------------|
| Size | W2 | W3 |
|------------------+--------------------+--------------------|
| 16KB | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 64KB | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| STATION ADDRESS SELECTION |
|------------------------------------------------------------|
| Node | SW3/1 |SW3/2 |SW3/3 |SW3/4 |SW3/5 |SW3/6 |SW3/7 |
|----------+-------+------+------+------+------+------+------|
| Dynamic | On | On | On | On | On | On | On |
|----------+-------+------+------+------+------+------+------|
| 1 | On | On | On | On | On | On | On |
|----------+-------+------+------+------+------+------+------|
| 2 | On | On | On | On | On | On | Off |
|----------+-------+------+------+------+------+------+------|
| 3 | On | On | On | On | On | On | Off |
|------------------------------------------------------------|
| Note:A total of 128 node address settings are available. |
| The switches are a binary representation of the decimal |
| node addresses. Switch 7 is the Least Significant Bit and |
| switch 1 is the Most Significant Bit. The switches have |
| the following decimal values: switch 1=64, 2=32, 3=16, |
| 4=8, 5=4, 6=2, 7=1. Turn Off the switches and add the |
| values of the Off switches to obtain the correct node |
| address. (On=0, Off=1) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOOT ROM |
|------------------------------------------------------------|
| Mode | SW3/8 |
|----------------------------+-------------------------------|
| 16KB | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 64KB | Pins 1 & 2 closed |
+------------------------------------------------------------+
