# IMC NETWORKS
PCNICII (PS/2)
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus MCA
Topology Linear Bus
Wiring Type AUI Tranceiver
RG-58A/U 50ohm coaxial
RG-59A/U 75ohm coaxial
RG-62A/U 93ohm coaxial
Boot ROM Not available

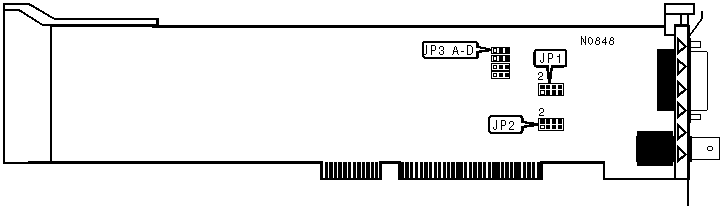

IMG IMG 1
+------------------------------------------------------------+
| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Cable | JP3 A | JP3 B | JP3 C | JP3 D |
| Type | | | | |
|--------+---------------+-----------+-----------+-----------|
| Thin | pins 2 & 3 | pins 2 & | pins 2 & | pins 2 & |
| (BNC) | closed | 3 closed | 3 closed | 3 closed |
|--------+---------------+-----------+-----------+-----------|
| Thick | pins 1 & 2 | pins 1 & | pins 1 & | pins 1 & |
| (AUI) | closed | 2 closed | 2 closed | 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COAXIAL CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Coaxial Cable Type | JP1 | JP2 |
|---------------------+-------------------+------------------|
| RG-58A/U 50ohm | pins 3 & 4 closed | pins 7 & 8 |
| coaxial | | closed |
|---------------------+-------------------+------------------|
| RG-59A/U 75ohm | pins 5 & 6 closed | pins 5 & 6 |
| coaxial | | closed |
|---------------------+-------------------+------------------|
| RG-62A/U 93ohm | pins 7 & 8 closed | pins 1 & 2 |
| coaxial | | closed |
+------------------------------------------------------------+
