# ICL
ETHERTEAM 16I COMBO
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus/Star
Wiring Type Shielded twisted pair
AUI Transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Available

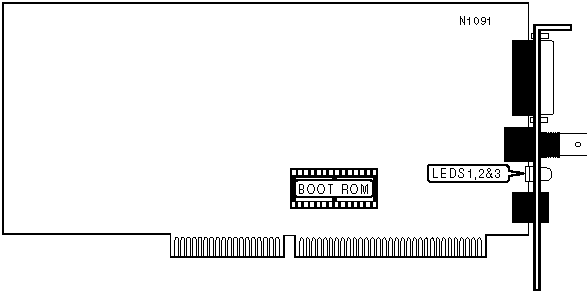

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | On | TP repeater connection is good |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | TP repeater connection is |
| | | | broken |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | On | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Off | Data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED3 | Red | Blinking | Network connection is good |
|------+--------+----------+---------------------------------|
| LED3 | Red | Off | Network connection is broken |
+------------------------------------------------------------+
