# LANCAST
ENC-4107
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus Parallel
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available

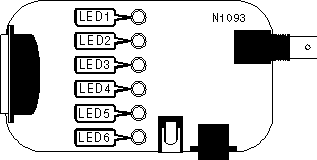

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Green | On | Polarity is reversed |
|------+-------+--------+------------------------------------|
| LED1 | Green | Off | Polarity is normal |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Network connection is good |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Network connection is broken |
|------+-------+--------+------------------------------------|
| LED3 | Amber | On | A collision on the network has |
| | | | occurred |
|------+-------+--------+------------------------------------|
| LED3 | Amber | Off | A collision on the network has not |
| | | | occurred |
|------+-------+--------+------------------------------------|
| LED4 | Green | On | Data is being received |
|------+-------+--------+------------------------------------|
| LED4 | Green | Off | Data is not being received |
|------+-------+--------+------------------------------------|
| LED5 | Green | On | Data is being transmitted |
|------+-------+--------+------------------------------------|
| LED5 | Green | Off | Data is not being transmitted |
|------+-------+--------+------------------------------------|
| LED6 | Green | On | Power is on |
|------+-------+--------+------------------------------------|
| LED6 | Green | Off | Power is not on |
+------------------------------------------------------------+
