# KINGSTON TECHNOLOGY CORPORATION
ETHERX KNE2000T+
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available
IMG IMG 1
IMG IMG 2
+------------------------------------------------------------+

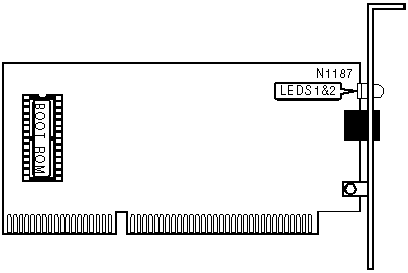

| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+----------+---------+------------------------------|
| LED1 | Yellow | On | Polarity is normal |
|--------+----------+---------+------------------------------|
| LED1 | Yellow | Off | Polarity is reversed |
|--------+----------+---------+------------------------------|
| LED2 | Green | On | Network connection is good |
|--------+----------+---------+------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
