# LANCAST
LE1357C
Card Type Ethernet
Data Bus 16-bit ISA
Maximum network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Available
IMG IMG 1
+------------------------------------------------------------+

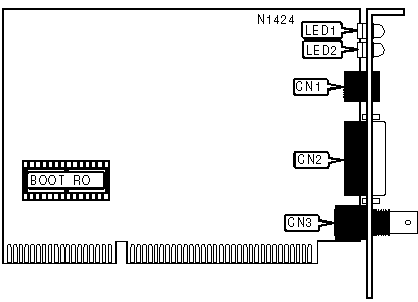

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Green | On | 10Base-T network |
| | | | connection is good |
|------+--------------+----------+---------------------------|
| LED1 | Green | Off | 10Base-T network |
| | | | connection is broken |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Blinking | Data is being |
| | | | transmitted/received |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | Data is not being |
| | | | transmitted/received |
+------------------------------------------------------------+
