       # LANTECH COMPUTER COMPANY

          PCMCIA/CT II

          NIC Type              Ethernet
          Network Transfer Rate 10Mbps
          Data Bus              PCMCIA Type II
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair

                                RG-58A/U 50ohm coaxial
          Boot ROM              Not available

   IMG IMG 1


          +------------------------------------------------------------+

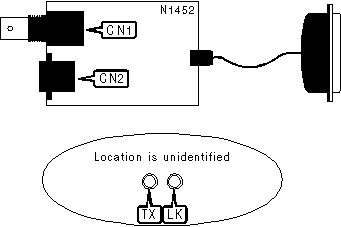

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Function    | Label |         Function          | Label |
          |----------------+-------+---------------------------+-------|
          | RG-58A/U 50ohm |  CN1  | Unshielded twisted pair   |  CN2  |
          | coaxial port   |       | port                      |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED | Color | Status |              Condition              |
          |-----+-------+--------+-------------------------------------|
          | TX  |  Red  |  Off   |  Adapter is not transmitting data   |
          |-----+-------+--------+-------------------------------------|
          | TX  |  Red  |   On   |    Adapter is transmitting data     |
          |-----+-------+--------+-------------------------------------|
          | LK  |  Red  |  Off   | Link integrity broken or adapter is |
          |     |       |        |         not receiving data          |
          |-----+-------+--------+-------------------------------------|
          | LK  |  Red  |   On   |  Link integrity good or adapter is  |
          |     |       |        |           receiving data            |
          +------------------------------------------------------------+
