# LANTECH COMPUTER COMPANY
PCI-NET/32 COMBO
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Available
IMG IMG 1
+------------------------------------------------------------+

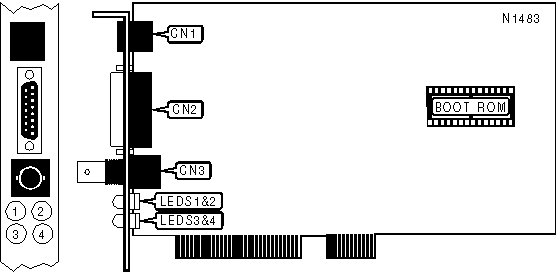

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Unshielded twisted pair | CN1 | RG-58A/U 50ohm | CN3 |
| port | | coaxial port | |
|---------------------------+-------+----------------+-------|
| AUI transceiver via DB-15 | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|------+----------+------------------------------------------|
| LED1 | On | Collision is detected on network |
|------+----------+------------------------------------------|
| LED1 | Off | Collision is not detected on network |
|------+----------+------------------------------------------|
| LED2 | Blinking | Data is being received |
|------+----------+------------------------------------------|
| LED2 | Off | Data is not being received |
|------+----------+------------------------------------------|
| LED3 | On | 10Base-T network connection is good or |
| | | 10Base-5 selected |
|------+----------+------------------------------------------|
| LED3 | Off | 10Base-T network connection is broken or |
| | | 10Base-5 not selected |
|------+----------+------------------------------------------|
| LED4 | Blinking | Data is being transmitted |
|------+----------+------------------------------------------|
| LED4 | Off | Data is not being transmitted |
+------------------------------------------------------------+
