# KATRON TECHNOLOGIES, INC.
KF-220TX
NIC Type Ethernet
Network Transfer Rate 10/100Mbps
Data Bus 32-bit PCI
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

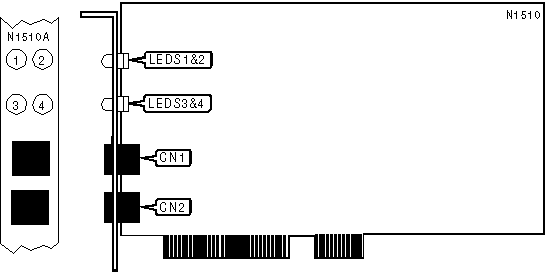

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Unshielded twisted | CN1 | Unshielded twisted | CN2 |
| pair port (100Mbps) | | pair port (10Mbps) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|-------+----------+-----------------------------------------|
| LED1 | On | 10Mbps mode is selected |
|-------+----------+-----------------------------------------|
| LED1 | Off | 10Mbps mode is not selected |
|-------+----------+-----------------------------------------|
| LED2 | On | 100Mbps mode is selected |
|-------+----------+-----------------------------------------|
| LED2 | Off | 100Mbps mode is not selected |
|-------+----------+-----------------------------------------|
| LED3 | Blinking | Data is being transmitted/received |
|-------+----------+-----------------------------------------|
| LED3 | Off | Data is not being transmitted/received |
|-------+----------+-----------------------------------------|
| LED4 | On | Network connection is good |
|-------+----------+-----------------------------------------|
| LED4 | Off | Network connection is broken |
+------------------------------------------------------------+
