# KATRON TECHNOLOGIES, INC.
DP32E2
NIC Type 100VG (Ethernet compatible)
Network Transfer Rate 10/100Mbps
Data Bus EISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available

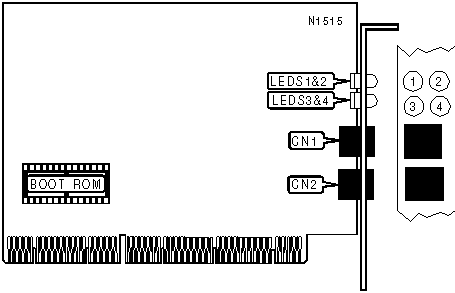

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | CN1 | Unshielded twisted | CN2 |
| pair port (100VG) | | pair port (10Base-T) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+---------+-----------------------------------------|
| LED1 | On | 100Mbps operation is selected |
|--------+---------+-----------------------------------------|
| LED1 | Off | 100Mbps operation is not selected |
|--------+---------+-----------------------------------------|
| LED2 | On | 10Mbps operation is selected |
|--------+---------+-----------------------------------------|
| LED2 | Off | 10Mbps operation is not selected |
|--------+---------+-----------------------------------------|
| LED3 | On | Network connection is good |
|--------+---------+-----------------------------------------|
| LED3 | Off | Network connection is broken |
|--------+---------+-----------------------------------------|
| LED4 | On | Data is being transmitted/received |
|--------+---------+-----------------------------------------|
| LED4 | Off | Data is not being transmitted/received |
+------------------------------------------------------------+
