# INTERPHASE CORPORATION
4815 EISA ATM ADAPTER (RJ-45 UTP)
NIC Type ATM
Network Transfer Rate 155Mbps
Data Bus 32-bit EISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

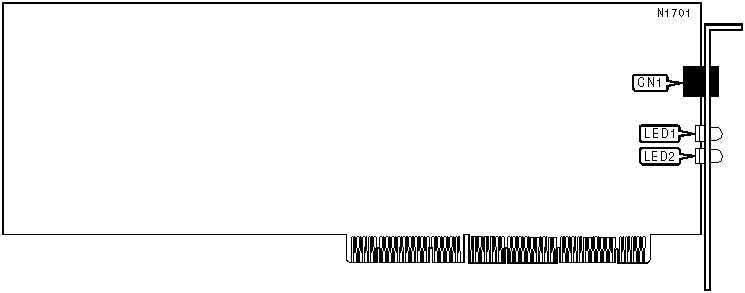

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | On | Network connection is broken |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | Blinks | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | Off | Power is off or network |
| | | | connection is good |
|------------------------------------------------------------|
| Note: The purpose of LED2 is unidentified. |
+------------------------------------------------------------+
