# IBM CORPORATION
NETWORK ADAPTER UNIT
NIC Type Unidentified
Network Transfer Rate Unidentified
Data Bus 8-bit ISA
Topology Star
Wire Type RG-59B/U 75ohm coaxial
Boot ROM Not available

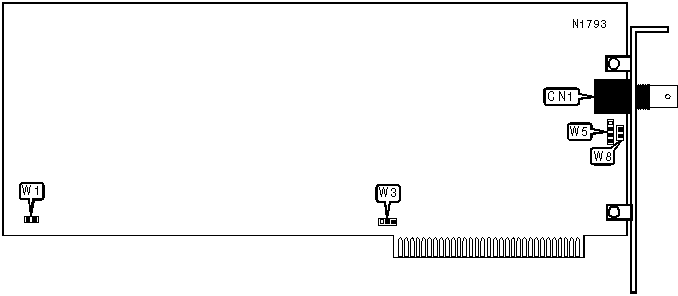

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|----------------------------------+-------------------------|
| RG-59B/U 75ohm coaxial connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|--------------------------------+-------+-------------------|
| Boot ROM disabled | W1 | Closed |
|--------------------------------+-------+-------------------|
| Boot ROM enabled | W1 | Open |
|--------------------------------+-------+-------------------|
| Card will use IRQ2 | W3 | Pins 2 & 3 closed |
|--------------------------------+-------+-------------------|
| Card will use IRQ3 | W3 | Pins 1 & 2 closed |
|--------------------------------+-------+-------------------|
| BIOS enabled | W8 | Closed |
|--------------------------------+-------+-------------------|
| BIOS disabled | W8 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS |
|------------------------------------------------------------|
| Setting | W5 |
|----------------------------+-------------------------------|
| 360h | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 368h | Pins 1 & 2, 3 & 4 closed |
+------------------------------------------------------------+
