       # INTEL CORPORATION

          ETHEREXPRESS PRO 10+ PCI

          NIC Type              Ethernet
          Network Transfer Rate 10Mbps
          Data Bus              32-bit PCI
          Topology              Linear Bus, Star
          Wiring Type           Unshielded twisted pair
          Boot ROM              Available

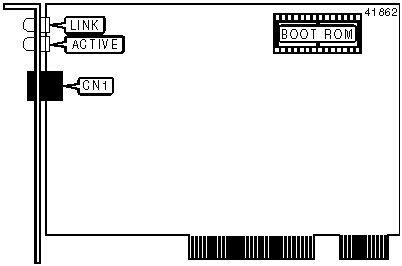

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Unshielded twisted pair       |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   | Color  | Status |            Condition            |
          |--------+--------+--------+---------------------------------|
          |  LINK  | Yellow |  Off   |       UTP link is broken        |
          |--------+--------+--------+---------------------------------|
          |  LINK  | Yellow |   On   |        UTP link is good         |
          |--------+--------+--------+---------------------------------|
          | ACTIVE | Green  |  Off   |  Data is not being transmitted  |
          |        |        |        |           or received           |
          |--------+--------+--------+---------------------------------|
          | ACTIVE | Green  |   On   |  Data is being transmitted or   |
          |        |        |        |            received             |
          +------------------------------------------------------------+
